Save on material and installation with this innovative retaining wall and bridge abutment solution.
Bolt-A-Bin is a cellular metal bin system that surrounds a compacted mass of granular material. The cells are formed from strong, corrugated metal components that have Galvanized and Aluminized Type 2 performance coatings for long-lasting service.
Strong and flexible bin wall system
The bin wall can be filled with locally available fill material. The filled metal shell acts as a gravity cribwall to resist surcharged loading, sliding and overturning of the earth behind it. This combination of strong, corrugated metal and soil mass provides a sturdy and dependable retaining wall or bridge abutment solution. Bolt-A-Bin’s flexible design adjusts to minor ground movement without cracking or bulging.
Easy, quick assembly of bin walls or abutments
Bolt-A-Bin can be quickly hand assembled on-site with no need for pile driving or concrete pouring, making it well-suited for use in remote areas.
Download the Bolt-A-Bin brochure below for more information and technical installation guidelines on this economical cellular bin wall system for retaining walls and bridge abutments.
BROCHURES & VIDEOS
-
Bolt-A-Bin Brochure
8-page, full-colour brochure outlining Bolt-A-Bin product, applications, specifications and geometries.
Download(2.78 MB)
PHOTO GALLERY
-

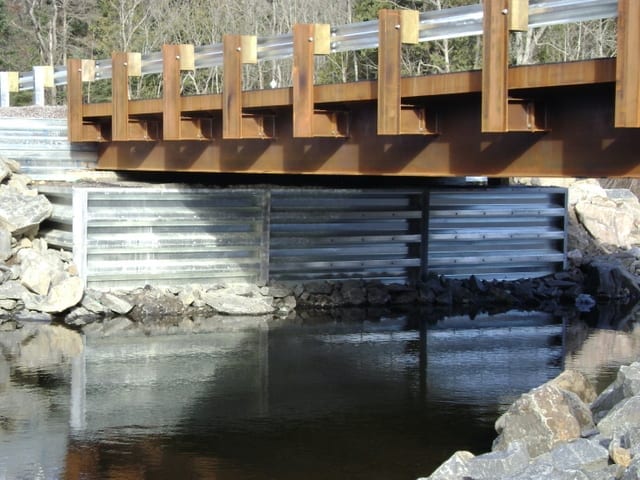

Bolt-A-Bin cellular bin wall bridge abutment -

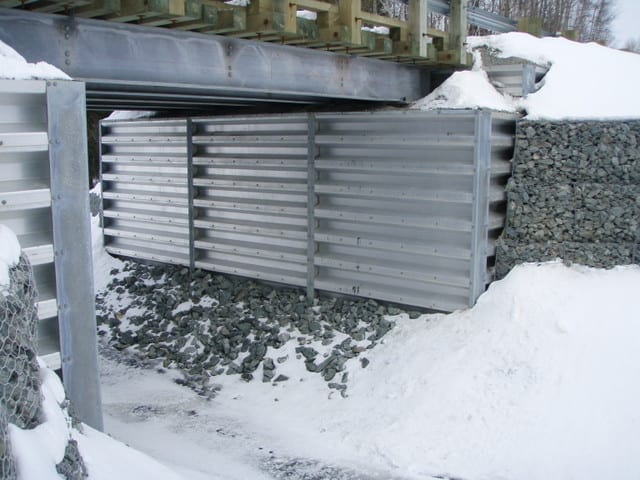

Bolt-A-Bin cribwall bridge abutment
-

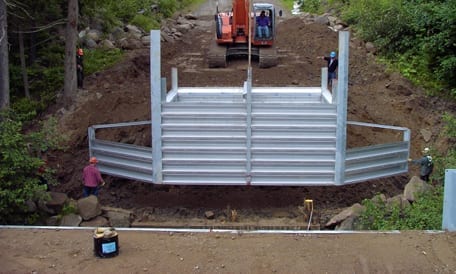

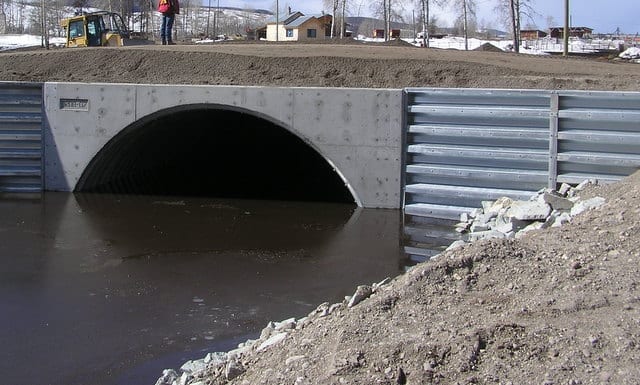

Bolt-A-Bin cellular bin wall wingwall application -

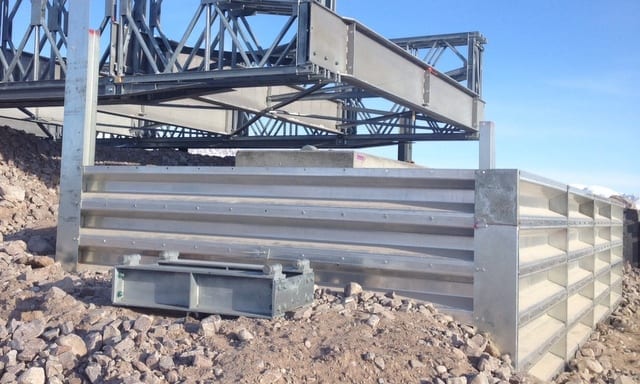

Crib wall bridge abutment for Modular Panel Bridge
-

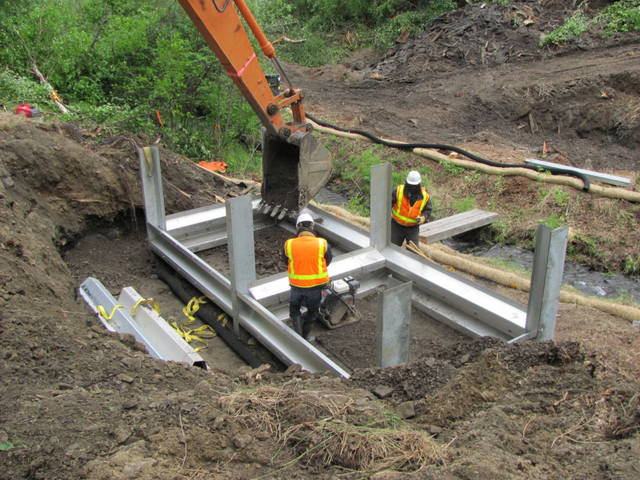

Bolt-A-Bin bridge abutment being assembled -
Machine filling of Bolt-A-Bin bridge abutment -

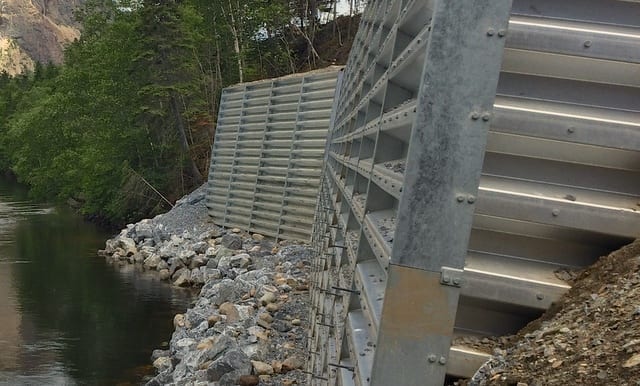

Bolt-A-Bin cribwall in battered application
